Electrical Disturbance

The surge test simulates induced lightning surge events that typically occur on low-voltage AC power circuits. This is a transient phenomenon of the conducted type

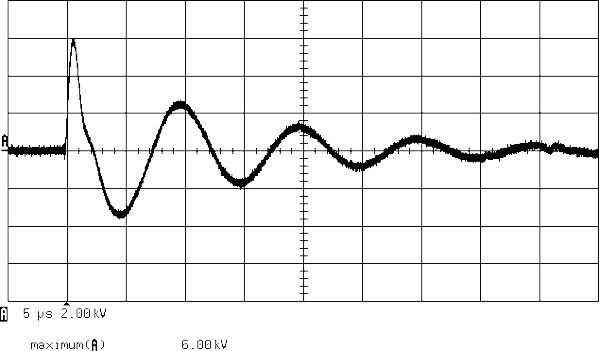

  • Availability for both the 100 kHz Ring Wave
  • 1.2/50 ųs Impulse at maximum test voltage of 6 kV
  • Standards conformance testing to IEEE C62.41 .90.1, ANSI C12.1, and more

IEEE C62.41 Recommended Practice

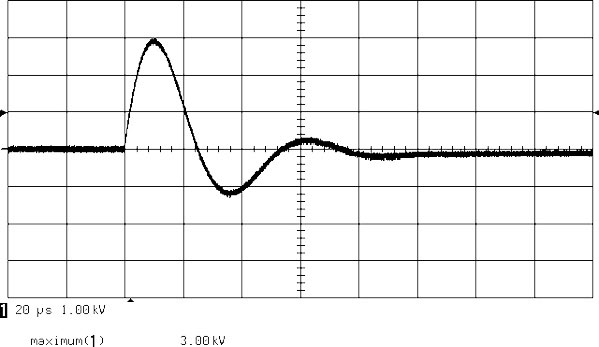

Combination Wave Current

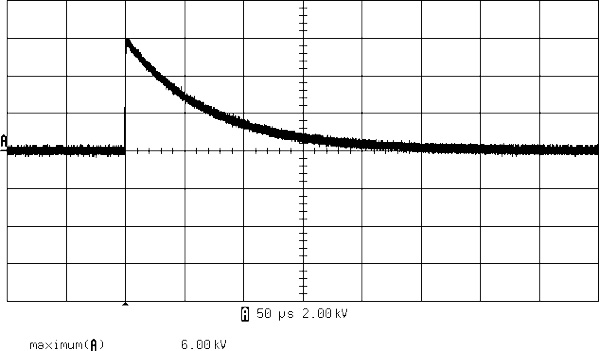

Wave Voltage
